DWG
Download files and designs with precision
Do you need DWG files? We can provide them upon request.
BIM
View and download BIM models of our products.
BIM objects perform an important function in the design and construction process. We invite you to view and download BIM models of ARPANEL sandwich panels with a core of PIR polyisocyanurate foam or MiWo mineral wool.
ARPANEL

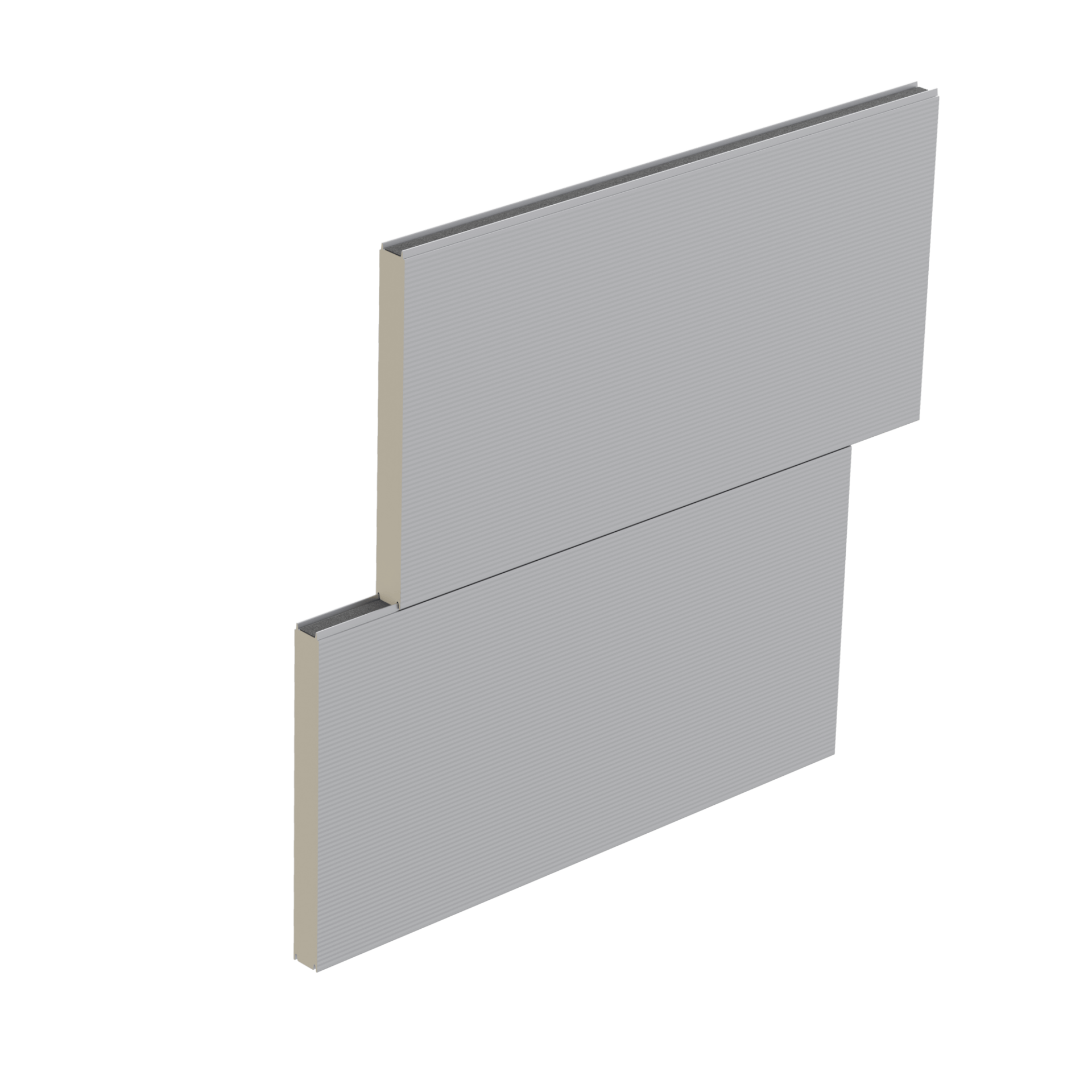

ARPANEL S PIR wall sandwich panel
ARPANEL S PIR wall sandwich panels with polyisocyanurate foam core are distinguished by very good thermal insulation performance. The panel installation system and the appropriate profile of the panel joint make the wall sandwich panels extremely tight for the penetration of air, water vapour and rain. ARPANEL S PIR is an ideal solution for external wall cladding, partition walls and ceilings of production halls, warehouses, shopping and logistics centres, car dealerships, industrial facilities and buildings.
Files to download
ARPANEL

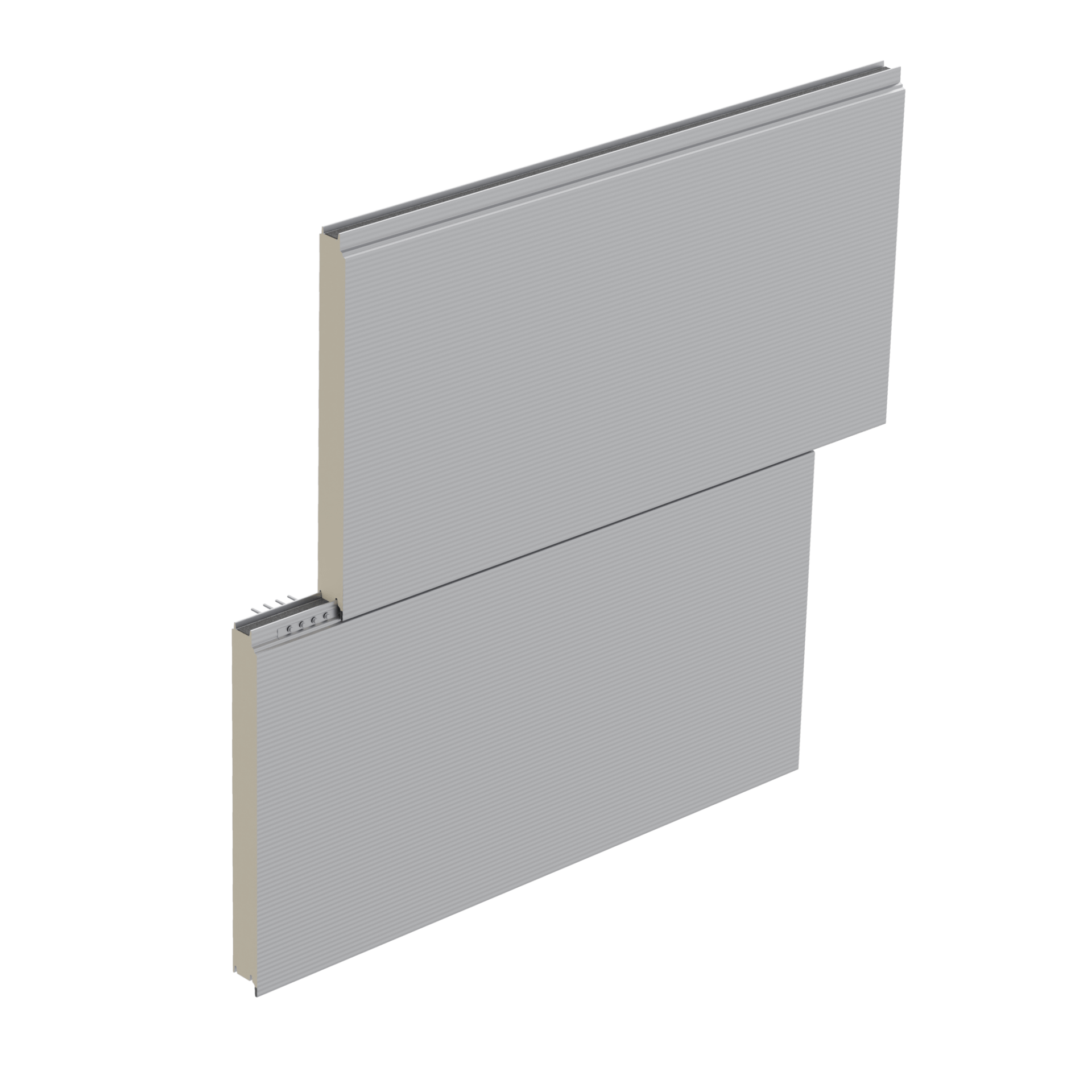

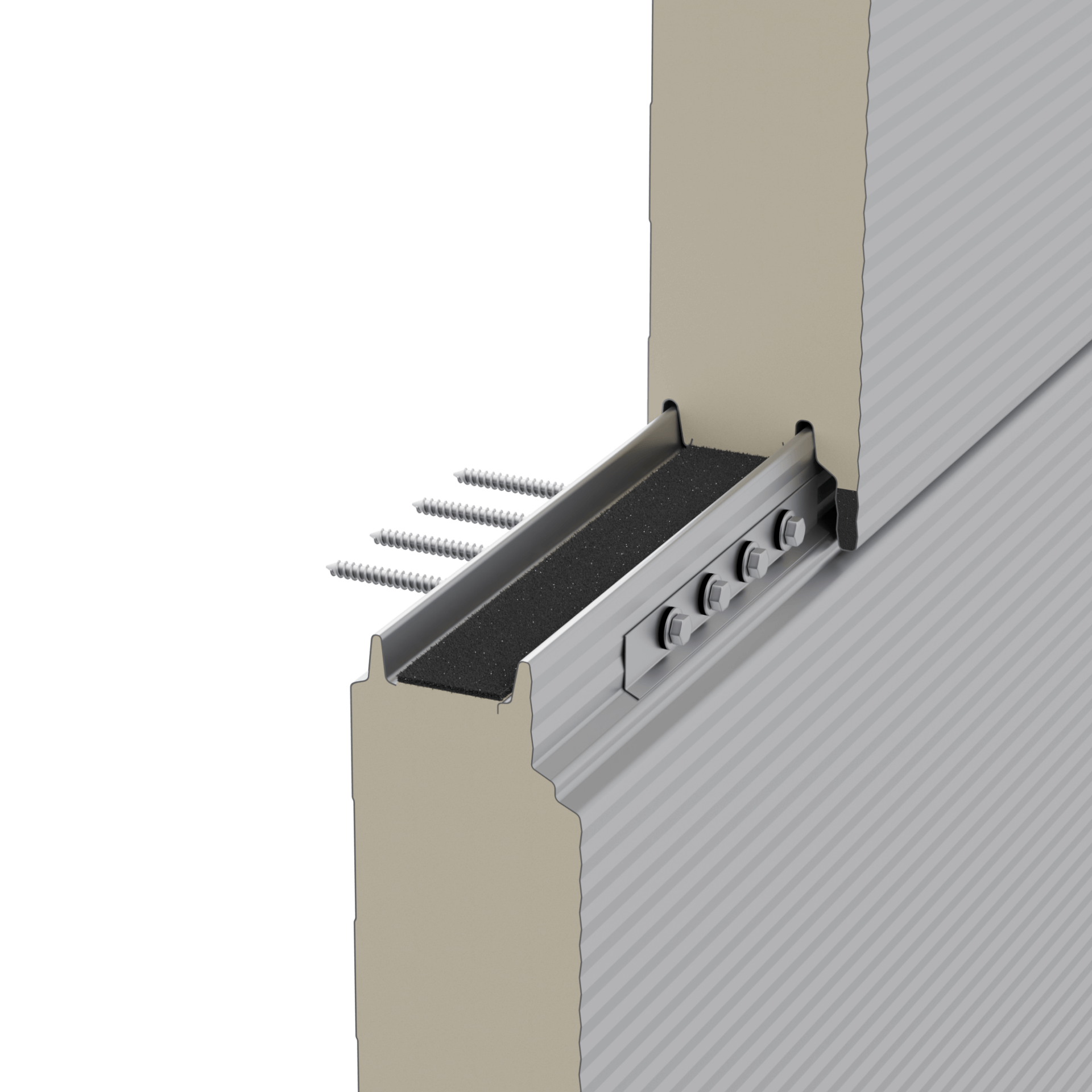

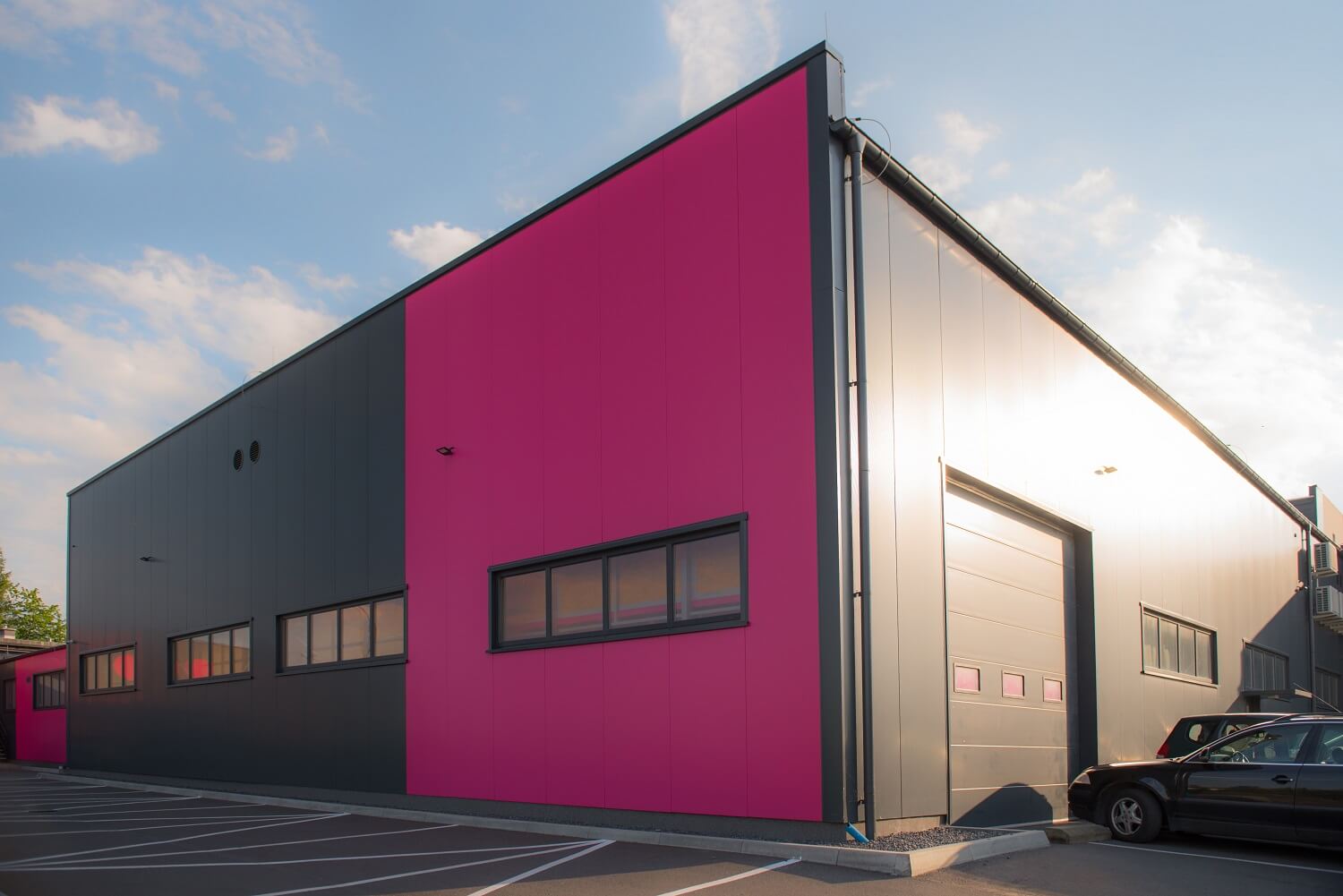

ARPANEL SU PIR wall sandwich panel
ARPANEL SU PIR wall sandwich panels with the hidden fastening system provide very efficient insulation, thermal and sound insulation. The panels are installed with connectors and system pressure distributors on the panel joints so that the fastening is invisible, thus improving the aesthetic qualities of the façade. The high tightness level is achieved with the specially profiled joints of the panels, known as the locks. ARPANEL SU PIR sandwich panels are ideal for wall cladding in vertical and horizontal system. They are perfect for industrial facilities, production and warehouse halls, shopping malls, logistics centres or car dealerships.
Files to download
ARPANEL

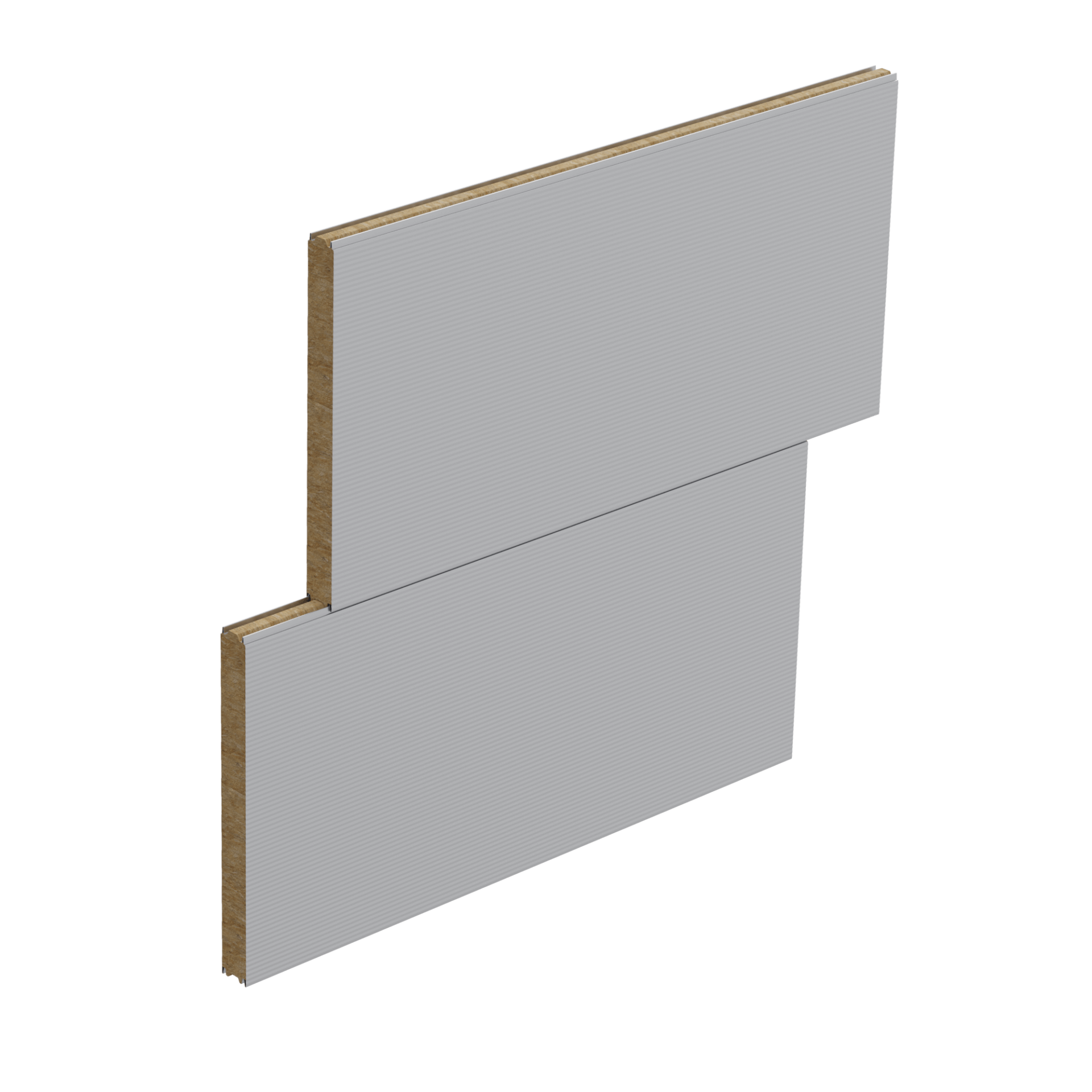

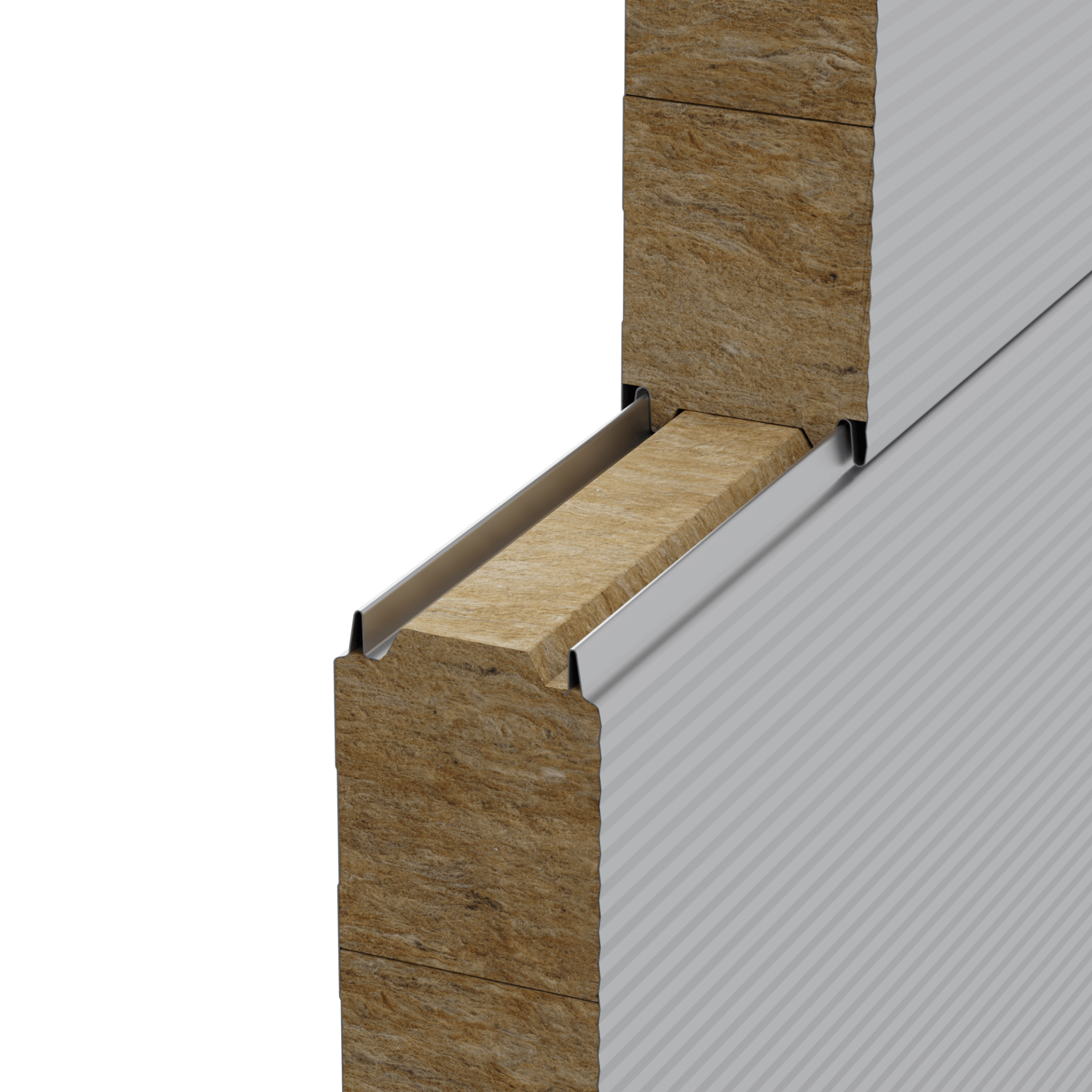

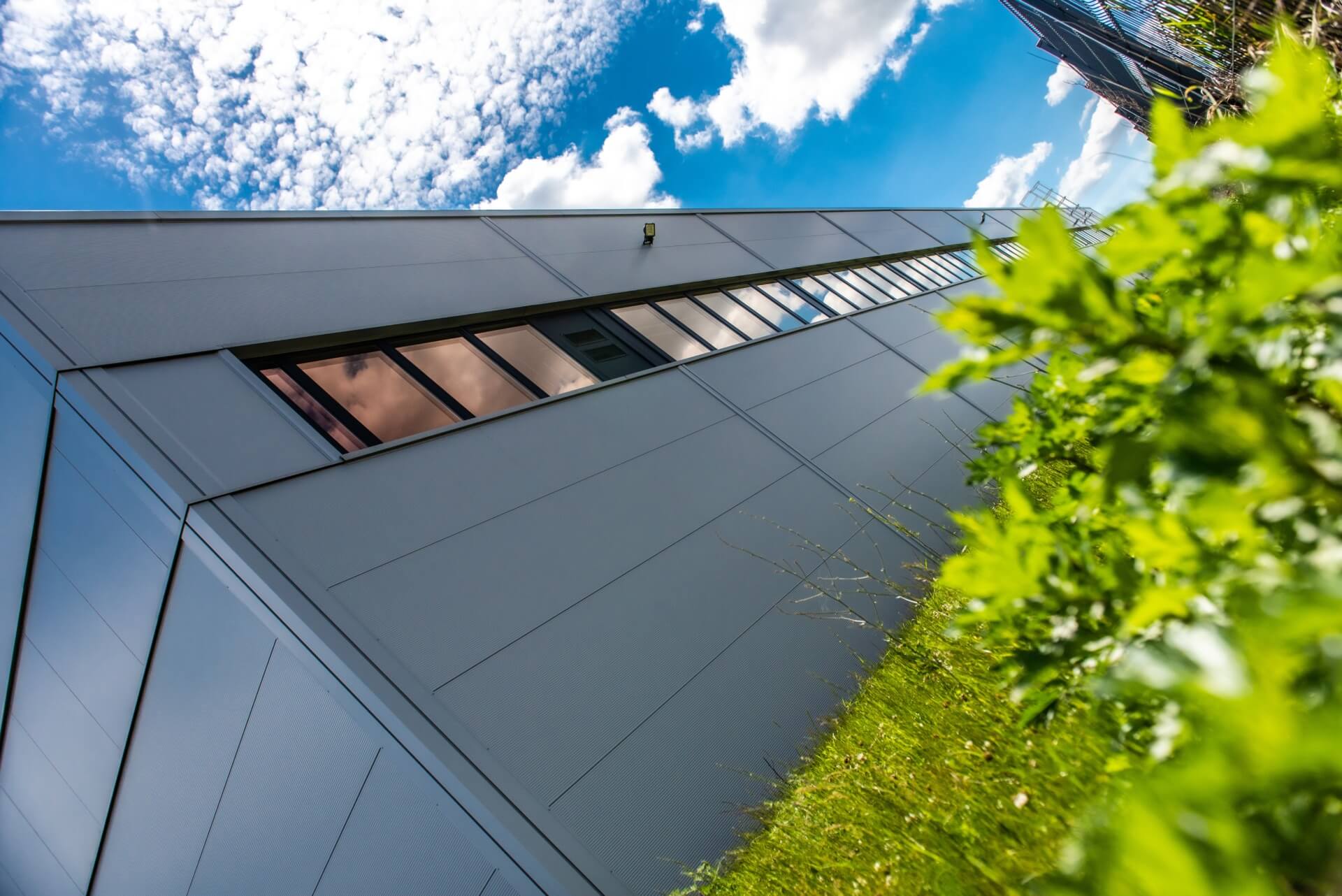

ARPANEL S MiWo wall sandwich panel
The ARPANEL S MiWo and S MiWo MXL wall sandwich panels are made up of two facings (the inner and outer ones) of galvanised and coated steel sheet and a mineral wool structural and insulation core. The core ensures excellent fire-resistance as well as superior thermal and sound insulation and, combined with the top quality galvanised steel sheet, ensures high mechanical strength and durability for long service life of the building finished with ARPANEL sandwich panels. The design of the sandwich panels allows for quick and simple installation in both horizontal and vertical system. All these factors make the ARPANEL S MiWo and MiWo MXL wall sandwich panels comply with the most stringent European standards. They work perfectly in facilities where fire safety is of key importance, such as external and internal partitions of fire separation. In addition to that, the ARPANEL S MiWo MXL sandwich panels with increased core density are the ideal solution when products with increased load capacity and mechanical strength are required in order to avoid the need to install additional structural elements.
Files to download
ARPANEL
ARPANEL S MiWo MXL wall sandwich panel
The ARPANEL S MiWo and S MiWo MXL wall sandwich panels are made up of two facings (the inner and outer ones) of galvanised and coated steel sheet and a mineral wool structural and insulation core. The core ensures excellent fire-resistance as well as superior thermal and sound insulation and, combined with the top quality galvanised steel sheet, ensures high mechanical strength and durability for long service life of the building finished with ARPANEL sandwich panels. The design of the sandwich panels allows for quick and simple installation in both horizontal and vertical system. All these factors make the ARPANEL S MiWo and MiWo MXL wall sandwich panels comply with the most stringent European standards. They work perfectly in facilities where fire safety is of key importance, such as external and internal partitions of fire separation. In addition to that, the ARPANEL S MiWo MXL sandwich panels with increased core density are the ideal solution when products with increased load capacity and mechanical strength are required in order to avoid the need to install additional structural elements.
Files to download
ARPANEL

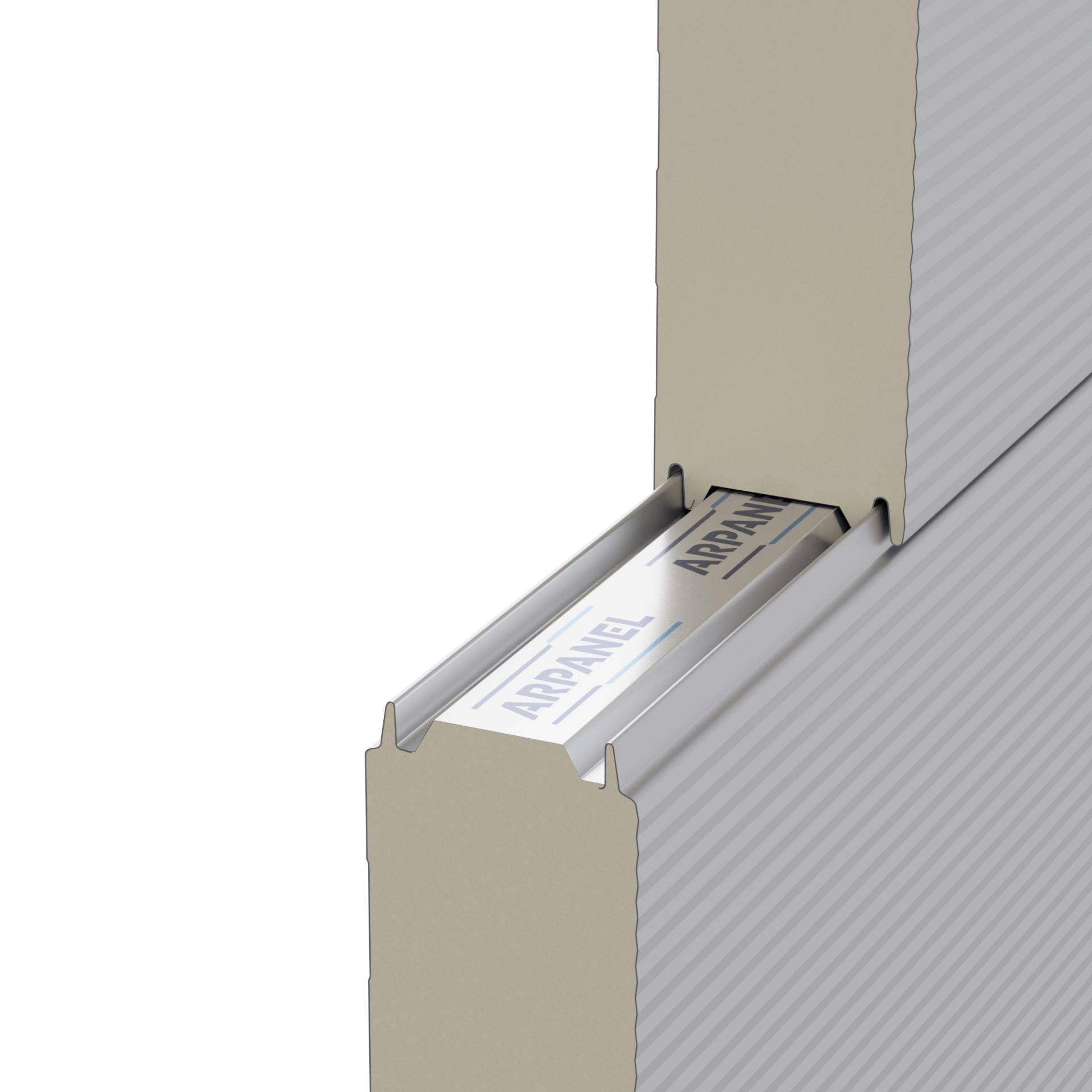

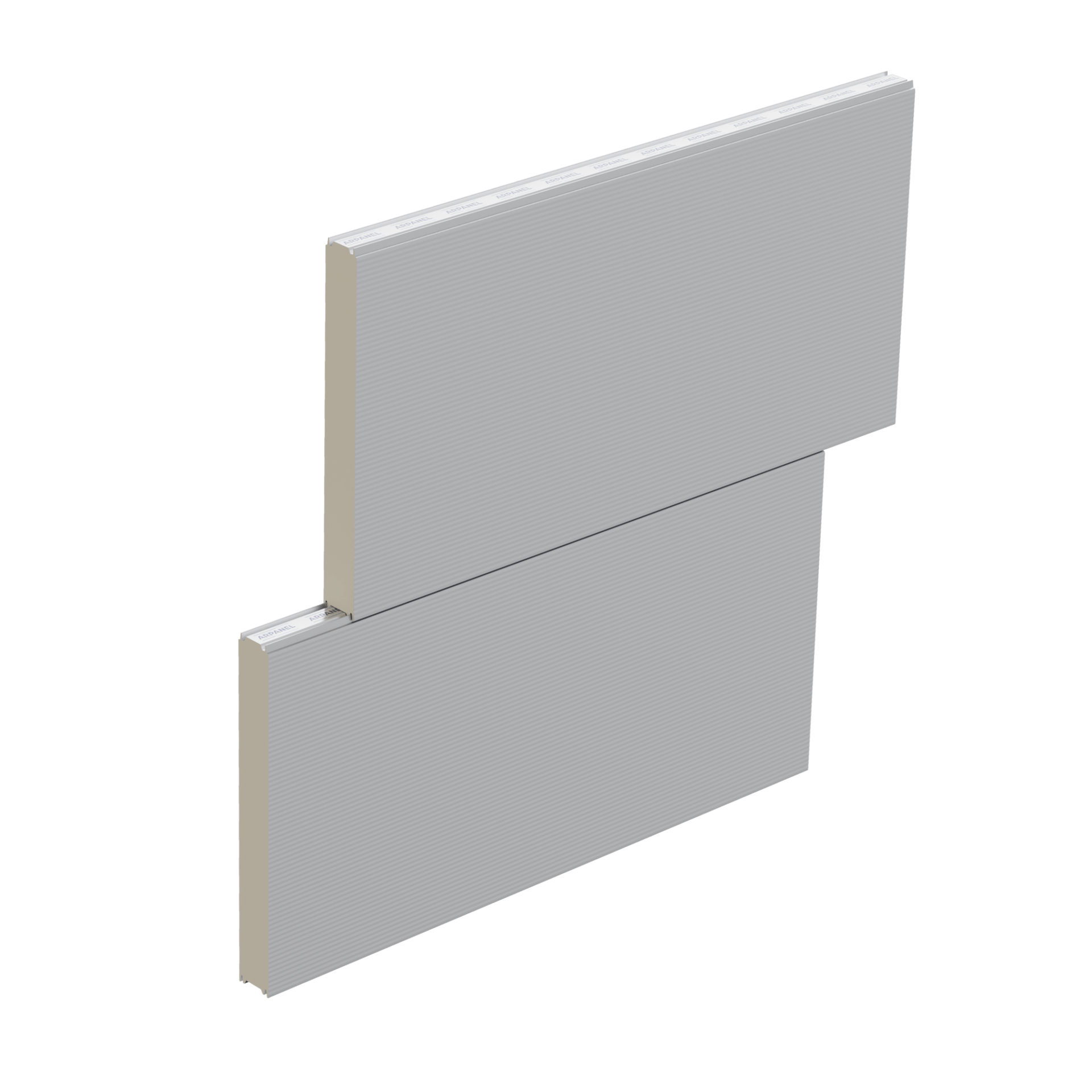

ARPANEL CH PIR cold store sandwich panel
The ARPANEL CH PIR cold store sandwich panels with polyisocyanurate foam core offer excellent thermal performance to ensure thermal insulation of walls. The cold store sandwich panels guarantee excellent tightness of the room. The properties of the PIR core and its combination with the facings give the panels very high mechanical strength. The cold store sandwich panels should be installed at the inner side of the structure. This ensured proper and longest possible functioning of the facility, with the lowest possible energy consumption.
Files to download
ARPANEL

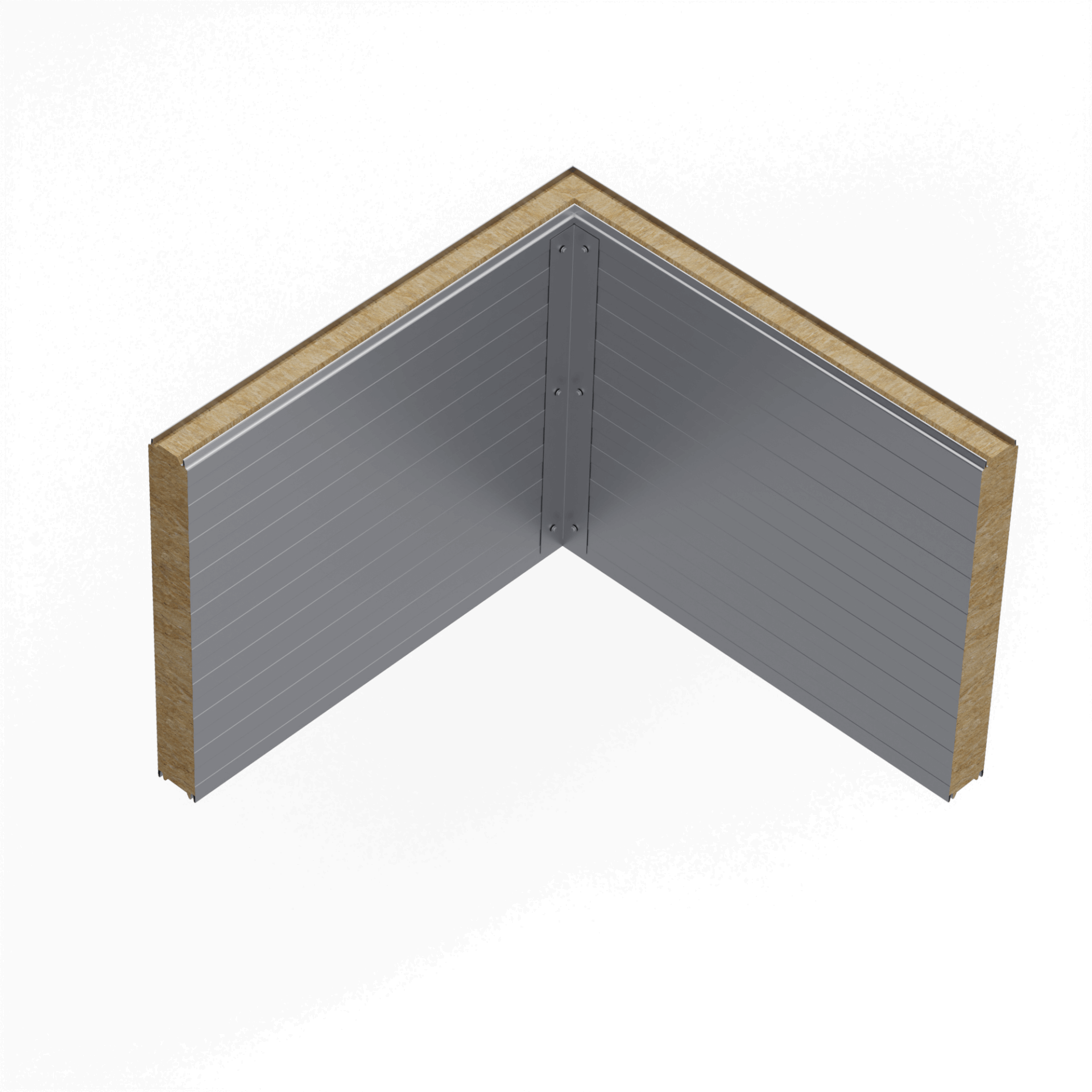

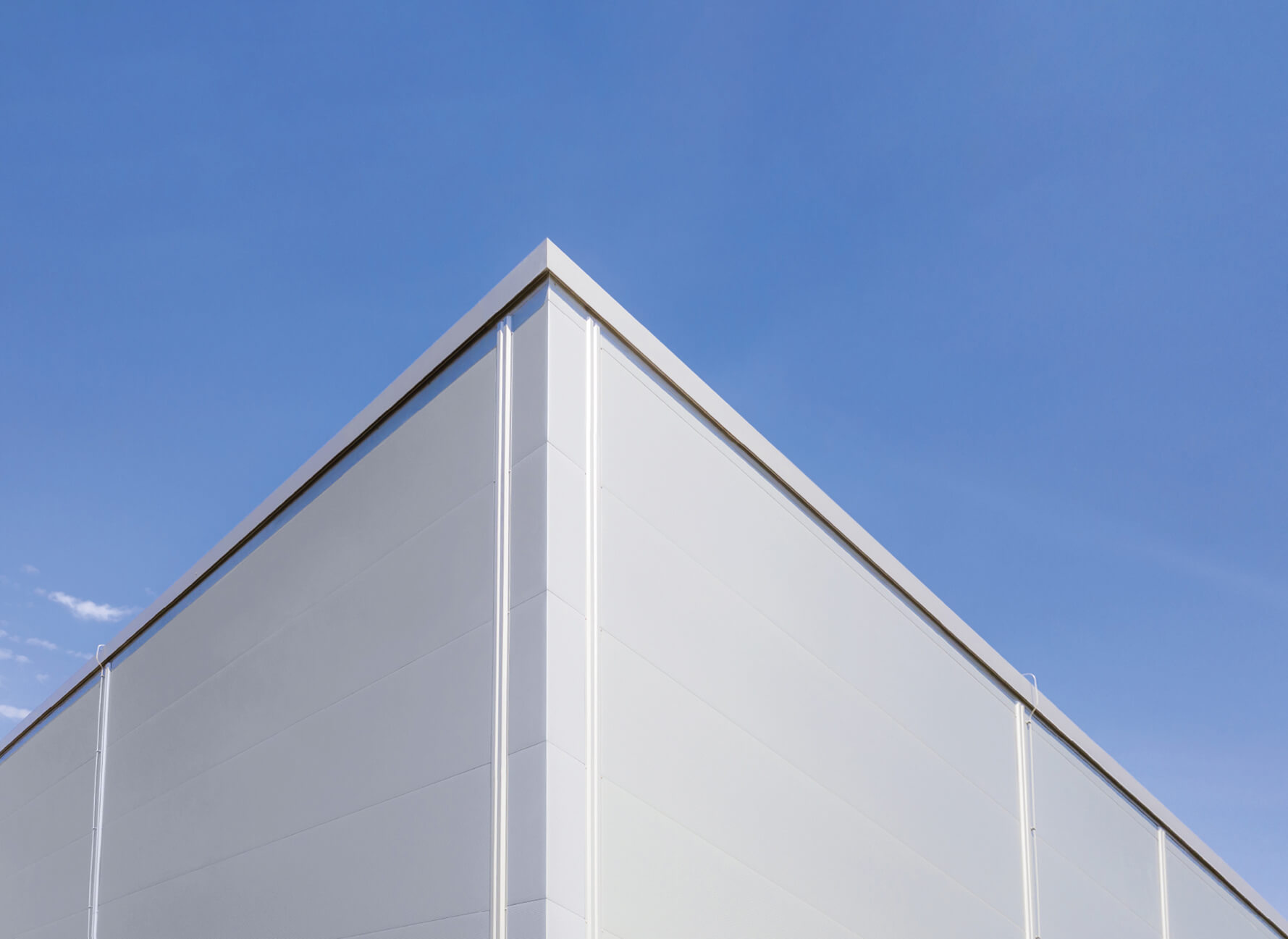

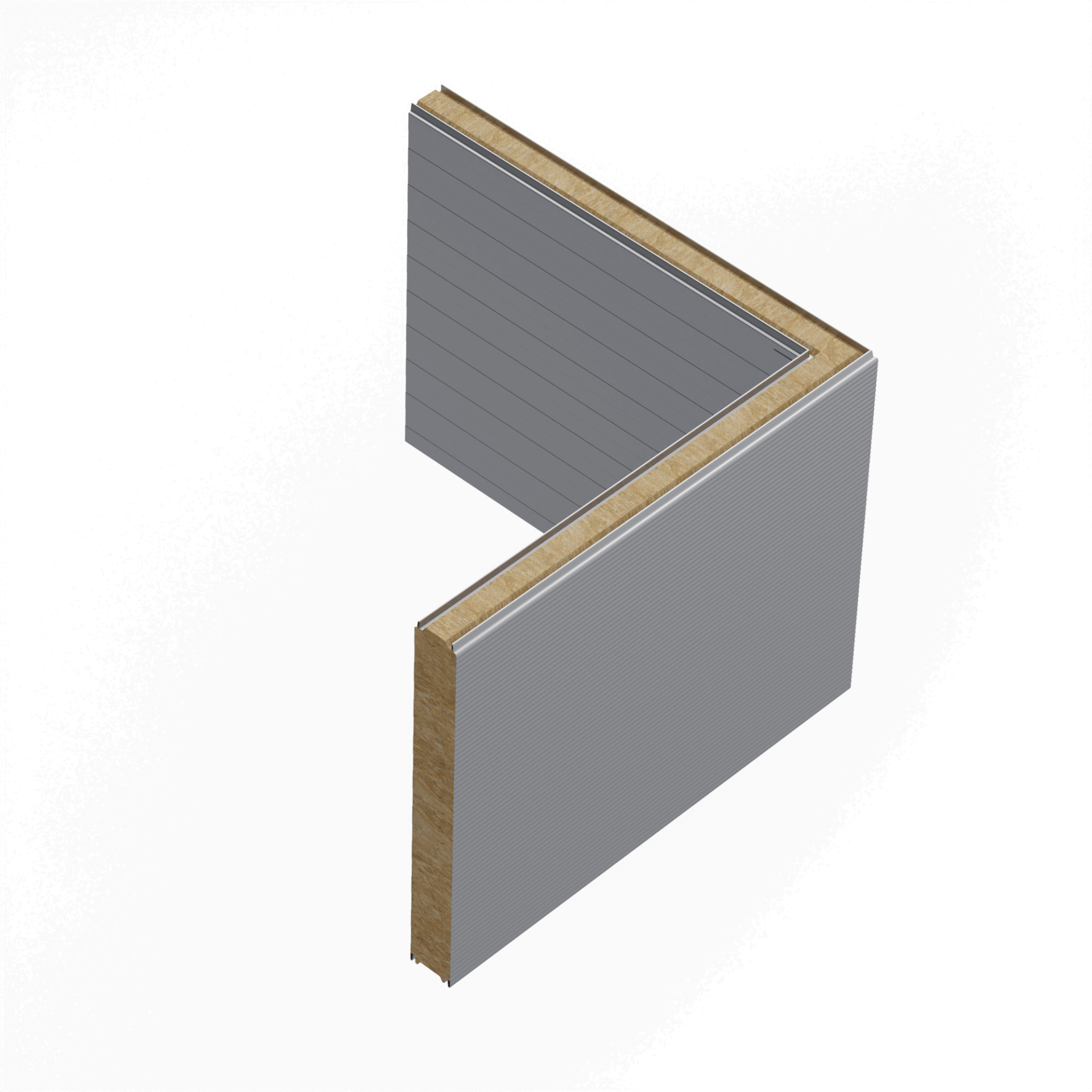

ARPANEL MiWo corner sandwich panels
Prefabricated corner sandwich panels with mineral wool core (so-called corners) create aesthetically pleasing and original edges of the building cladding. The key advantage of the corners, outside the aesthetics, is the installation without the need for corner flashings, to make the finishing of facade systems extremely effective and unique.
