ARPANEL Premium Line
ARPANEL Premium Line
AESTHETICS
CONTROL
AESTHETICS – COLOUR GUARANTEE FOR YEARS!
ARPANEL AESTHETICS is a high-quality sandwich panel featuring Colorcoat Prisma® prefinished coating by Tata Steel, combining aesthetics, elegance and durability while meeting the highest environmental standards.
Thanks to the certifications and standards that ARPANEL AESTHETICS sandwich panels meet, we are able to guarantee long-lasting performance of up to 40 years for industrial and commercial building cladding on the weather exposed sides and up to 20 years of unrivalled colour stability.
The ARPANEL AESTHETICS panels are primarily used for cladding walls and roofs of buildings with enhanced aesthetics and durability, including commercial buildings, warehousing and production buildings, as well as public sector buildings with enhanced aesthetics.
| Typical properties of the ARPANEL AESTHETICS sandwich panels with the Colorcoat Prisma® coating | Test as per standard | ||
|
Nominal thickness of organic coating: |
|||
|
Solid |
μm |
65 |
EN 13523-1 |
|
Metallic |
μm |
65 |
EN 13523-1 |
|
Matt |
μm |
65 |
EN 13523-1 |
|
Elements |
μm |
40 |
EN 13523-1 |
|
Resistant to corrosion and UV radiation: |
|||
|
Corrosion resistance – Salt spray |
(h) |
1000 |
EN 13523-8 |
|
Corrosion resistance – Moisture resistance |
(h) |
1500 |
EN 13523-26 |
|
Corrosion resistance category |
(h) |
RC5, CPI5 |
EN 10169:2015 |
|
Radiation resistance category |
(h) |
Ruv4 |
EN 10169:2015 |
External facings profiling

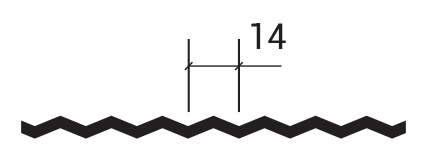

Micro 14
Micro 8
Linear
Smooth
Internal facings profiling
Linear
Smooth
CONTROL – GUARANTEED TO LAST FOR YEARS!
ARPANEL CONTROL are top-quality sandwich panels featuring Advantica® L Control dedicated food-safe coating, also suitable for rooms with the highest cleanliness requirements in the pharmaceutical and medical industry, IT centres, data centres, laboratories, cold stores and deep freeze stores.
The ARPANEL CONTROL sandwich panels are the ideal solution for rooms with a controlled atmosphere, where the highest standards of sterile and hygiene conditions must be met. In addition, the panels are perfect for indoor environments where an easy-to-clean feature, resistance to cleaning agents and very high resistance to physical damage and scratches are required, especially in places with heavy traffic.
The applications for ARPANEL CONTROL sandwich panels include mainly internal walls and ceilings of cold stores, food processing plants, the food industry, clean-room type areas and medical environments such as hospital wards and heavy-traffic healthcare areas.
| Typical properties of the ARPANEL CONTROL sandwich panels with the Advantica® L Control coating | Test as per standard | ||
|
Nominal thickness of organic coating: |
|||
|
μm |
120 or 150 |
EN 13523 – 1 |
|
|
Corrosion resistance |
|||
|
Corrosion resistance – Inert salt spray |
(h) |
500 |
EN 13523 – 8 |
|
Corrosion resistance – Moisture resistance |
(h) |
1500 |
EN 13523 – 26 |
|
Scratch resistance |
|||
|
g |
4000 |
EN 13523-12 |
|
|
Volatile organic compound |
|||
|
A+ |
EN ISO 16000-9 |
External facings profiling
Micro 14
Micro 8
Linear
Smooth
Internal facings profiling
Linear
Smooth
