Horizontal façade system
Flashings for the horizontal façade system (OBPZ)
Flashings are a component of the light cladding system. In addition, they are also used as a standalone finishing element. Thanks to them, it is possible to combine and finish walls and other elements of construction made of sandwich panels. Flashings are made of galvanized sheet metal with 25 μm polyester coating of standard thickness 0.50, 0.63, 0.70, 0.75 mm and in lengths from 1.00 m to 6.00 m. Other lengths should be consulted with the manufacturer.
ARPANEL sandwich panels on offer:
Eaves flashing A
OBPZ -1
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 110 |
Eaves flashing B
OBPZ-2
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 150 |
Eaves flashing C
OBPZ-3
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 65 + z |
Window sill flashing
OBPZ-4
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 208 + z |
Eaves flashing
OBPZ-5
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 165 |

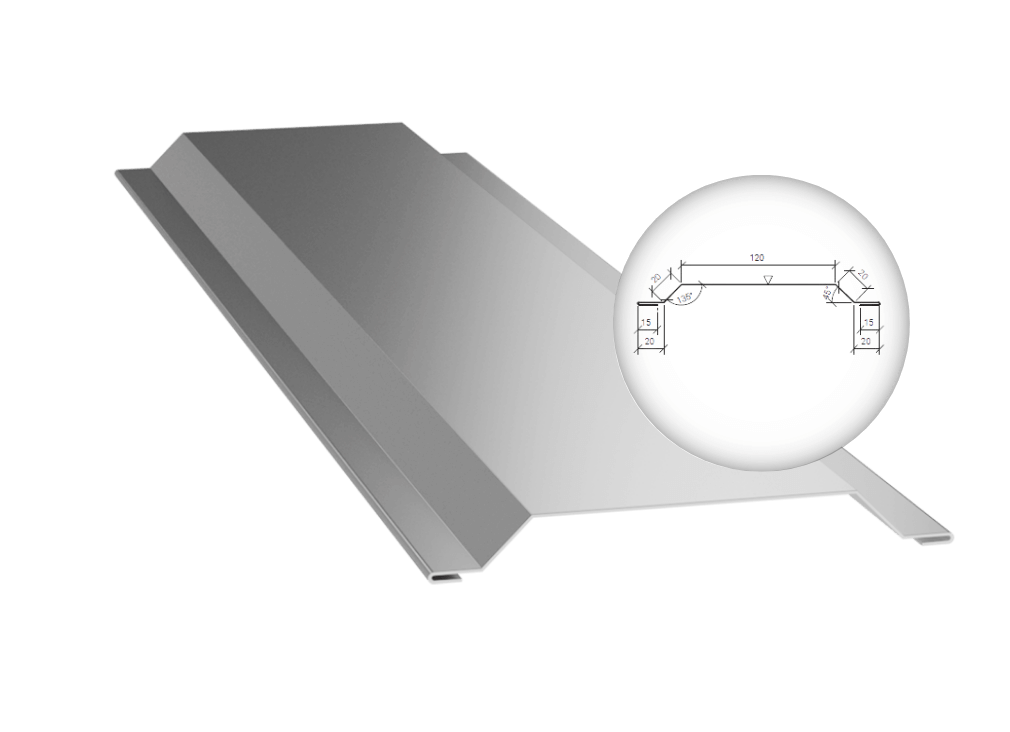

Mask flashing A
OBPZ-6
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 230 |
Mask flashing B
OBPZ-7
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 175 |
Mask flashing C
OBPZ-8
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 240 |
Dilatation flashing
OBPZ-9
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 180 |

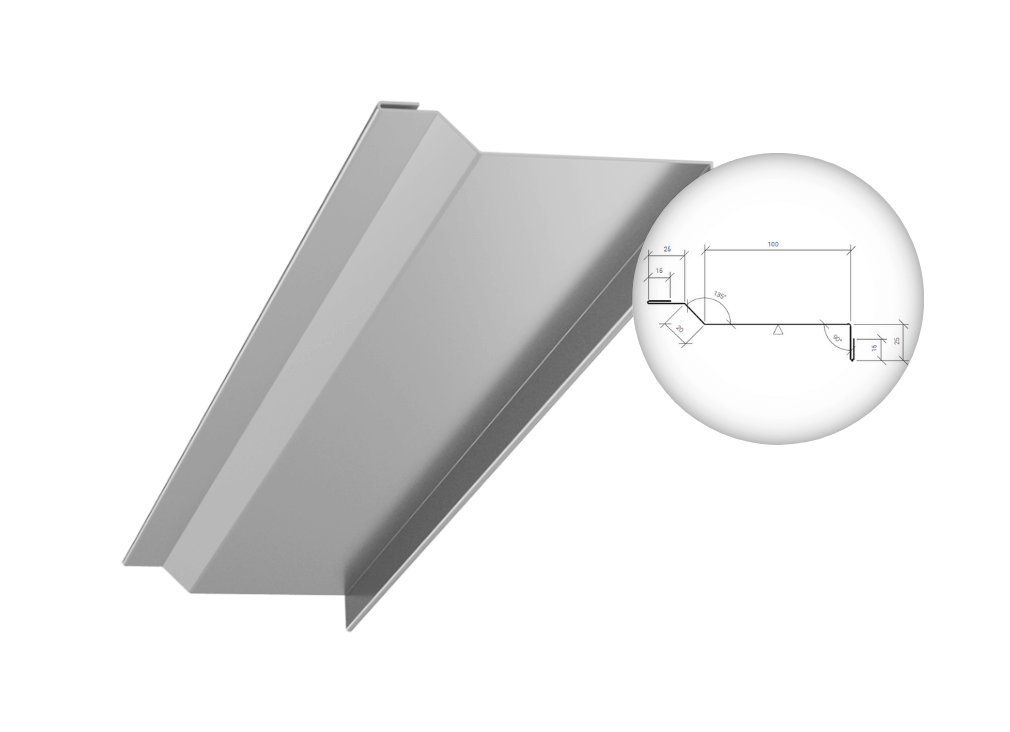

Internal mask flashing
OBPZ-10
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 200 |
Internal corner flashing
OBPZ-11
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 110 |
Lintel flashing A
OBPZ-12
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 55 + z |
Gate flashing
OBPZ-13
SPECIFICATION
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
| Extension [mm] | 80 + z | 80 + z | 80 + z | 80 + z | 80 + z | 80 + z | 80 + z | 80 + z | 80 + z |
Window flashing
OBPZ-14
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 155 + z |
Side flashing
OBPZ-15
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 177 + z |
Internal mask flashing A
OBPZ-16
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 105 |
Internal mask flashing B
OBPZ-17
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 165 + z |
Corner flashing
OBPZ-18
SPECIFICATION
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
| Extension [mm] | 432 | 472 | 512 | 552 | 592 | 612 | 632 | 672 | 712 |

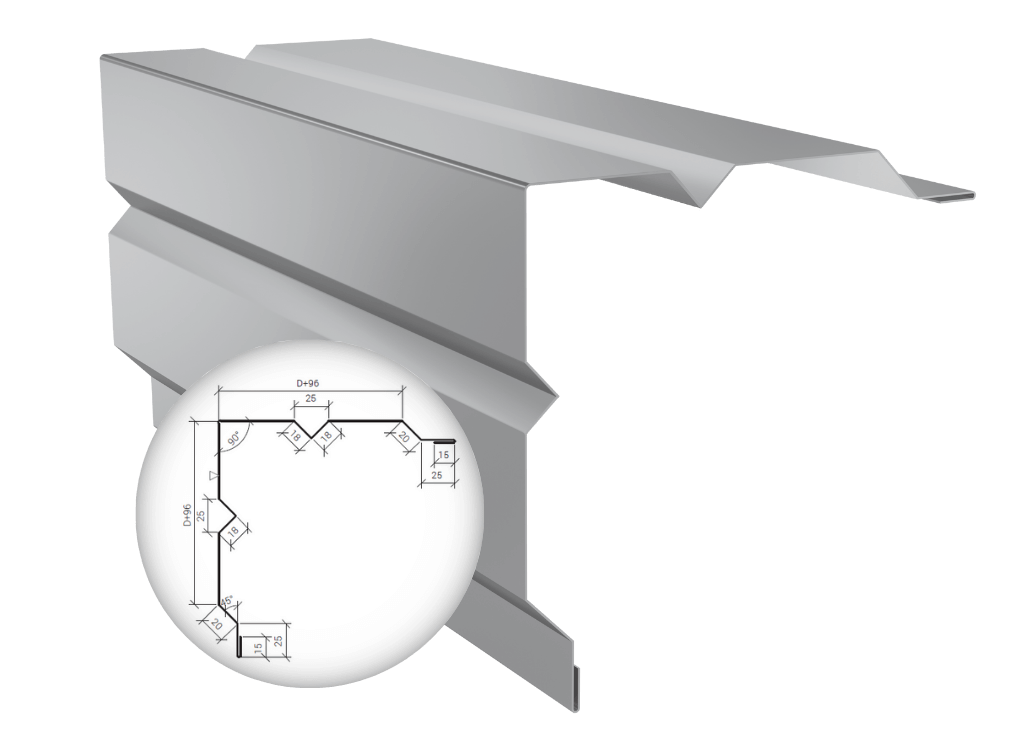

Corner flashing
OBPZ-18a
SPECYFIKACJA
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
| Extension [mm] | 504 | 544 | 584 | 624 | 664 | 684 | 704 | 744 | 784 |
Lintel flashing B
OBPZ-19
SPECIFICATION
| Panel thickness [mm] | 60-200 |
| Extension [mm] | 55 + z |

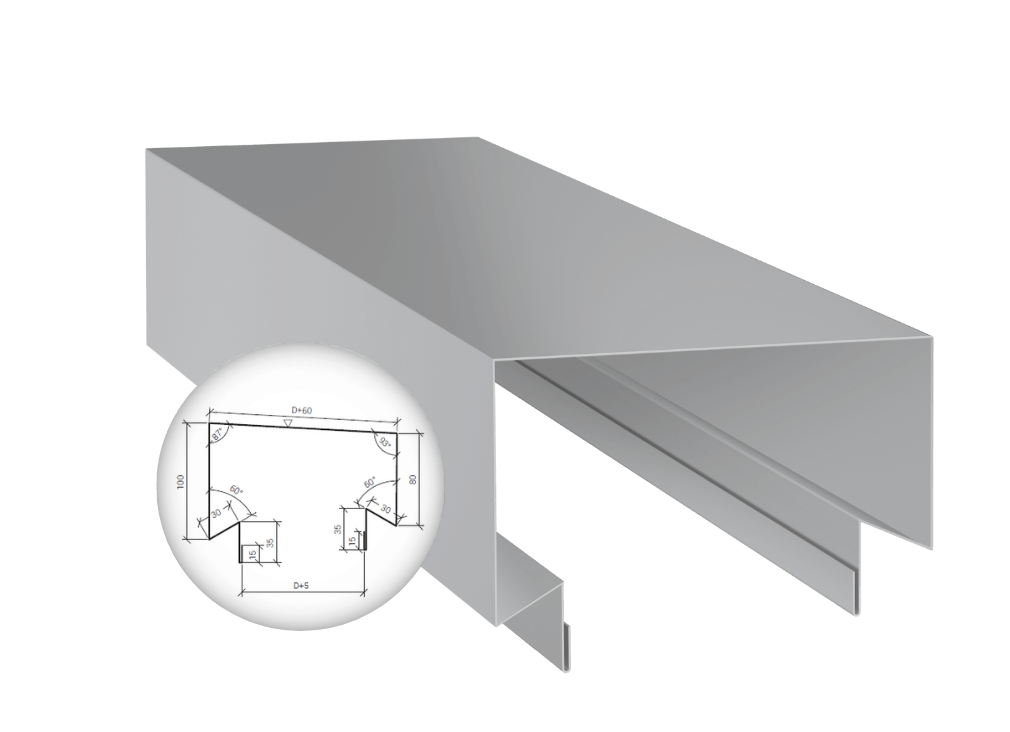

Attic flashing
OBPZ-20
SPECIFICATION
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
| Extension [mm] | 405 | 425 | 445 | 465 | 485 | 495 | 505 | 525 | 545 |
Parapet cap support
OBPZ-21
SPECIFICATION
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
| Extension [mm] | 192 | 212 | 232 | 252 | 272 | 282 | 292 | 312 | 332 |
