Fixing profiles

Home » Products » Flashings » Fixing profiles

Fixing profiles are an element that starts the assembly of sandwich panels. We make fixing profiles of galvanized sheet with a Z275 coating, uncoated with a standard thickness. 2mm and lengths from 1-6 m. Other lengths should be consulted with the manufacturer.

ARPANEL sandwich panels on offer:
LS-1 LS-2 LS-3 LS-4
LS-1
Fixing profile A for ARPANEL S PIR, S MiWo, CH PIR

LS-1

SPECIFICATION

Panel thickness [mm] 60 80 100 120 140 150 160 180 200
Extension [mm] 110 130 150 170 190 200 210 230 250

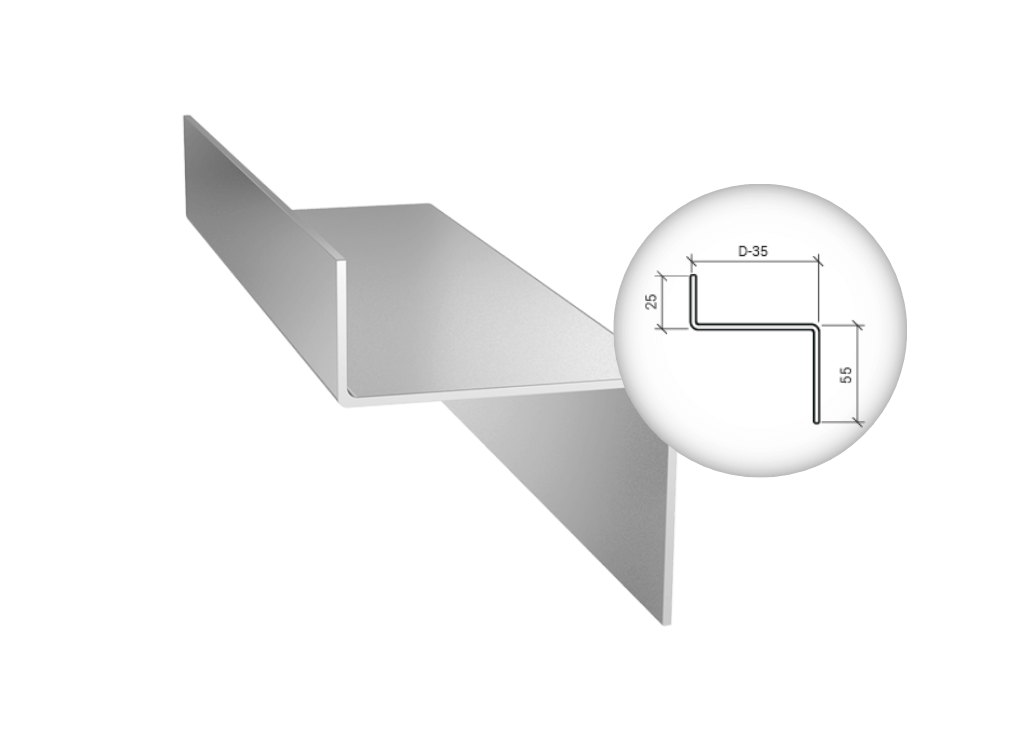

LS-2
Fixing profile B for ARPANEL SU PIR

LS-2

SPECIFICATION

Panel thickness [mm] 60 80 100 120
Extension [mm] 105 125 145 165

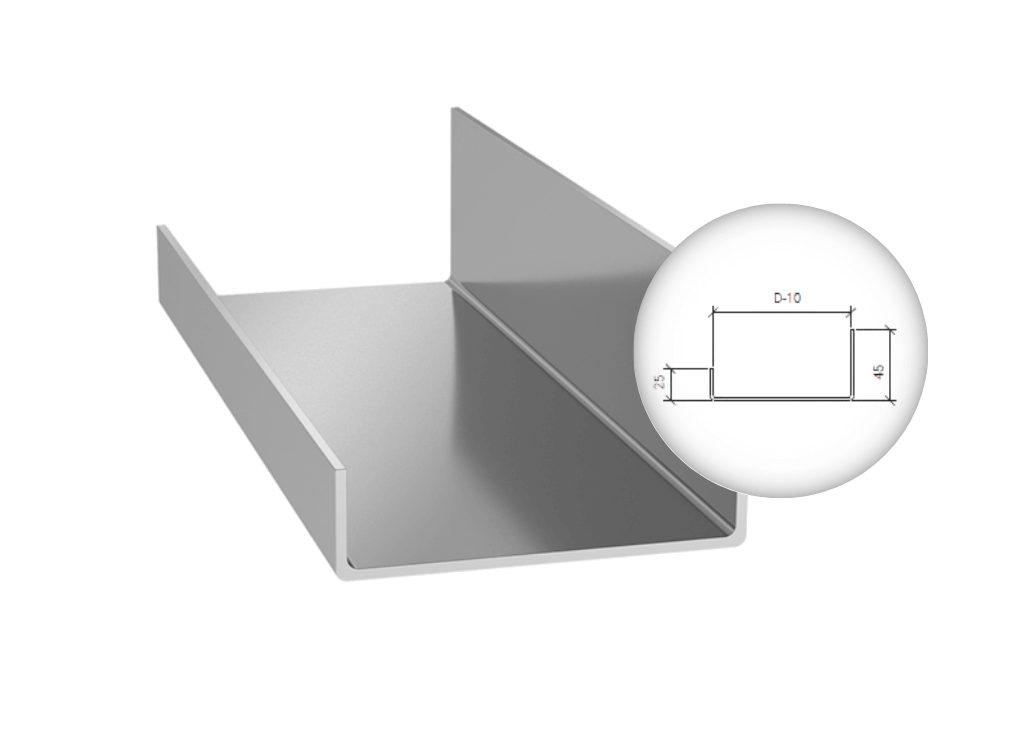

LS-3
Fixing profile C for ARPANEL S PIR, S MiWo, CH PIR

LS-3

SPECIFICATION

Panel thickness [mm] 60 80 100 120 140 150 160 180 200
Extension [mm] 120 140 160 180 190 210 220 240 260
LS-4
Fixing profile D for ARPANEL SU PIR

LS-4

SPECIFICATION

Panel thickness [mm] 60 80 100 120
Extension [mm] 105 125 145 165
