Installation accessories
In order to ensure our customers’ satisfaction, we offer assistance in selecting the right installation accessories. Our range of the ARPANEL light cladding system boasts high-class system components that are the perfect solution to ensure a tight and reliable finish to wall and roof cladding. Accessories such as fasteners, gaskets, pressure distributor plates and calottes are necessary for the correct installation of sandwich panels.
Offer of ARPANEL sandwich panels:
Profiled gasket for roof trapezoid/ "comb gasket"
US-01
SPECIFICATION
| Cross-section | PE TR-20mm/AN 2UAE0948 |
Acoustic and insulating gasket PES 20
US-02
SPECIFICATION
| Cross-section | PES 20 x 3 mm |
Acoustic and insulating gasket PES 30
US-03
SPECIFICATION
| Cross-section | PES 30 x 3 mm |
Acoustic and insulating gasket PES 40
US-04
SPECIFICATION
| Cross-section | PES 40 x 3 mm |
Expanding gasket PURS
US-05
SPECIFICATION
| Cross-section | 10 x 2-10 mm |
Butyl gasket
US-06
SPECIFICATION
| Cross-section | 10 x 3 mm |
Self-drilling fastener with pad and gasket (galvanised carbon steel)
Z 01
SPECIFICATION
| Cross-section | Selected by the constructor |
Self-drilling fastener with pad and gasket (A-2 stainless steel)
Z 01 A
SPECIFICATION
| Cross-section | Selected by the constructor |
Self-tapping fastener with pad and gasket (galvanised carbon steel)
Z 02
SPECIFICATION
| Cross-section | Selected by the constructor |
Self-tapping fastener with pad and gasket (A-2 stainless steel)
Z 02 A
SPECIFICATION
| Cross-section | Selected by the constructor |
Sheet metal stitching screw (galvanised carbon steel)
Z 03
SPECIFICATION
| Cross-section | Selected by the constructor e.g. Ø 4,8×19-Ø14 |
Sheet metal stitching screw (A-2 stainless steel)
Z 03 A
SPECIFICATION
| Cross-section | Selected by the constructor e.g. Ø 4,8×19-Ø14 |
Fastener for fixing sheet metal to steel structure (galvanised carbon steel)
Z 04
SPECIFICATION
| Cross-section | Selected by the constructor |
Fastener for installation of sandwich panels to reinforced concrete structure (galvanised carbon steel)
Z 05
SPECIFICATION
| Cross-section | Selected by the constructor |
Calotte – trapezoidal pad
KLT
SPECIFICATION
| Cross-section | min. 36mm-32° e.g. 36-40 |
Tight rivet
NT
SPECIFICATION
| Cross-section | Selects the constructor taking into account the thickness of elements e.g. AL/FE 4.0×8, AL/FE 4.8×16 |

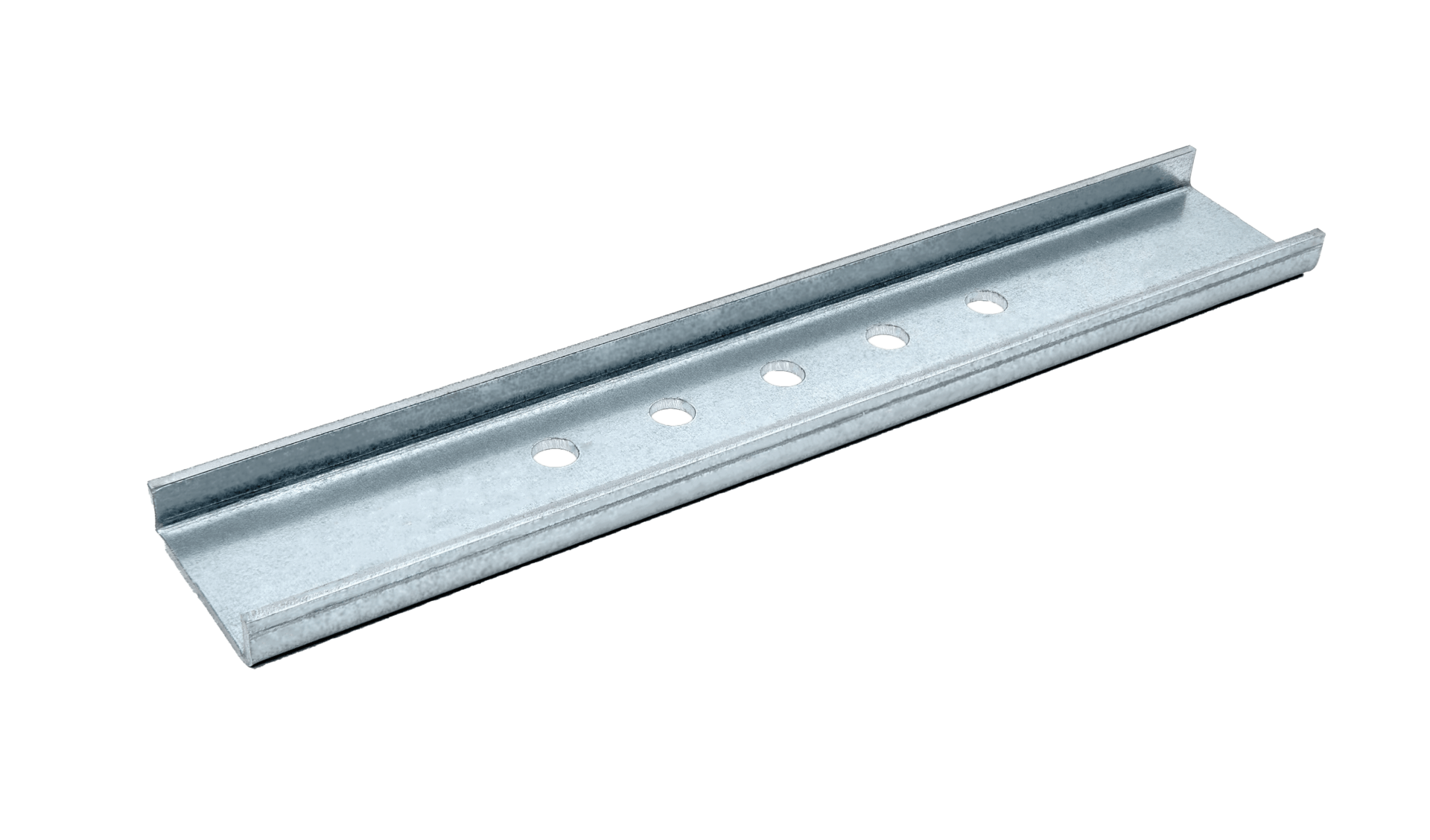

Pressure distributor plate 200 for SU PIR (stainless steel)
RN 200
SPECIFICATION
| Cross-section | 200 mm |
Pressure distributor plate 200 for SU MiWo
RN 200
SPECIFICATION
| Cross-section | 200 mm |

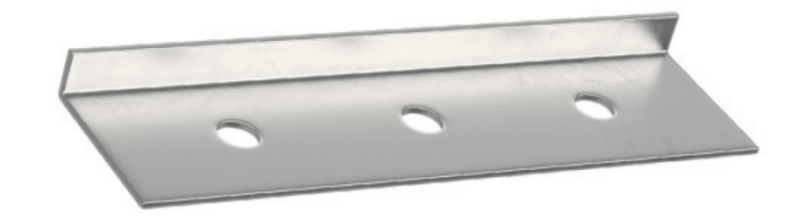

Pressure distributor plate 120
RN 120
SPECIFICATION
| Cross-section | 120 mm |
EPDM gasket against water vapour and air infiltration
EPDM
SPECIFICATION
| Cross-section | Ø 6,6 x 1 mm |
